WHITELINE ANTI-LIFT KIT - FORD FOCUS ST

2005+ Ford Focus models including the Focus ST and Focus RS MKII . Part # KCA428 is designed to replace the front control arm rear mounted bushing (refer schematic below) with a lightweight aluminium housing matched with high performance/ low compliance chassis control bushings.

KCA428 provides added static caster to both front wheels by 0.5 deg (RS Focus) or 1 deg (Focus ST), while changing the nature of front anti dive.

The low compliance bushing eliminates the soft non-responsive feel felt from the OEM fluid filled bushing and maintains more positive caster control during hard braking and cornering.

By changing the front control arm geometry, the new high tensile alloy mounts, coupled with the new low compliance bushings, change front suspension attitude to improve driver feel, feedback and confidence.

The additional positive caster coupled with the new elastomer bushings supplied, serve to dramatically sharpen initial turn-in response, forcing more consistent alignment angles through the corner due to the reduced bushing compliance.

What?€?s this Anti Stuff all about?

"Anti" features in suspension systems are a characteristic that can be used to influence the stiffness of the front or rear suspension under traction forces(under braking or accelerating). The individual terms are relatively straightforward and self-explanatory with the "anti?€? reducing or totally restricting the characteristic (lifting or diving). In the front suspension there may be levels of anti-dive during braking and anti-lift during accelerating (assuming traction to the front wheels is present).

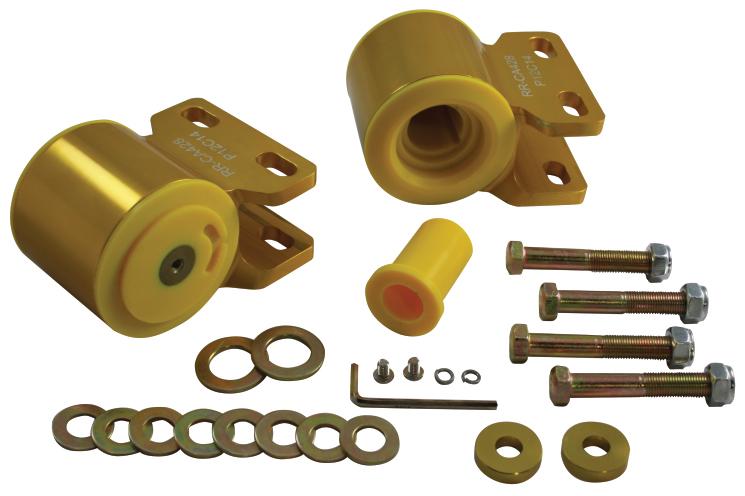

This unique kit utilises a two piece bushing for compliance and ease of installation. It is greased after installation to ease fitment and promote longer life.
